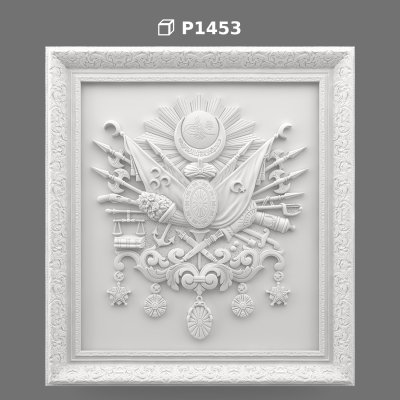

Polyurethane Ottoman Coat of Arms Decorative Relief Panel
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Relief-worked, three-dimensional patterned embossed surface |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 1050 × 960 × 50 mm |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (654 KB)
Similar Products(Decorative Wall Panels Collection)
The P1453 relief wall panel is a highly detailed decorative feature piece depicting the traditional Ottoman Coat of Arms. Designed to serve as a majestic focal point, this panel introduces historic depth and three-dimensional texture to premium interior walls or grand exterior facades. It offers an efficient way to integrate intricate classical art into modern architectural projects, elevating flat surfaces with a commanding historical motif.
Measuring 1050 mm in width, 960 mm in height, and featuring a prominent 50 mm relief depth, the panel is engineered for visual impact. Crafted from high-density rigid polyurethane (150-220 kg/m³), it delivers the structural solidity and crisp detail of carved wood or stone while remaining remarkably lightweight. Its closed-cell composition ensures less than 1% water absorption, preventing decay, warping, or cracking when exposed to humidity or outdoor weather elements.
Visually, the panel showcases the intricate heraldry of the Ottoman Empire, featuring the central imperial tughra encircled by sunbeams, ceremonial flags, scales of justice, traditional weaponry, and hanging medals. The deep 3D relief carving creates natural highlight and shadow play under various lighting conditions, transforming plain walls into gallery-like installations with rich cultural context.
This decorative panel is ideal for prestigious commercial and residential settings. It functions perfectly as a signature wall behind hotel reception desks, in luxury restaurant dining halls, executive offices, or residential living rooms. For exterior applications, it can be integrated into villa entrance pediments, courtyard walls, or historical restoration projects, provided it is finished with a UV-resistant topcoat.
Installation is straightforward compared to heavy plaster or stone alternatives. The lightweight panel is secured using polyurethane (PU) assembly adhesive combined with mechanical screws for a secure, permanent bond. While the factory-applied primer prepares the surface for painting, an additional primer coat is optional depending on the specific topcoat manufacturer’s warranty guidelines.
- This high-relief decorative panel is best utilized as a focal point on feature walls in prestigious settings
- Indoors, it commands attention in luxury living rooms above fireplaces, behind grand entrance lobbies, in executive boardrooms, and boutique hotel lounges
- Outdoors, it is highly effective for decorating villa facades, entrance portals, garden walls, or historical renovation projects
- Assess water and moisture exposure using the product technical data, surface finish and installation details
- Ensure the mounting surface is clean, dry, and level
- Apply a high-quality polyurethane (PU) assembly adhesive generously to the back of the panel
- Press the panel firmly onto the wall and secure mechanically with screws at discrete points to hold the weight while the adhesive cures
- Fill screw holes and joints with an exterior-grade acrylic filler or polyurethane sealant
- Once cured, sand the filled areas with 180-220 grit sandpaper
- While the factory primer prepares the surface, applying an optional paint-specific primer is recommended to secure the paint manufacturer's warranty
- Finish with two coats of premium water-based or synthetic paint
- UV-resistant paint is mandatory for outdoor applications
- Maintenance is minimal due to the non-porous nature of the rigid material
- For indoor installations, occasionally dust the intricate relief details with a soft brush or wipe with a damp cloth
- For outdoor facades, the panel can be gently washed with low-pressure water; avoid high-pressure power washers and harsh chemical solvents
- Periodic inspection of the paint finish is recommended for outdoor setups to ensure the UV protective layer remains intact over the years
Can this relief panel be installed on exterior villa walls?
Assess water and moisture exposure using the product technical data, surface finish and installation details. To protect the material from solar degradation, it must be painted with a high-quality UV-resistant exterior paint.
How does the weight of this panel compare to plaster or stone carvings?
Weighing significantly less than traditional plaster or stone, this rigid PU panel reduces structural load on walls and simplifies the installation process, allowing for safe mounting on diverse wall types.
Is an additional primer required before painting the panel?
The panel comes pre-treated with a factory-applied primer. While it is ready for paint, applying an additional paint-specific primer is optional but highly recommended to comply with paint manufacturer warranty guidelines.
What adhesive should be used for mounting this panel?
You must use a high-quality polyurethane (PU) assembly adhesive for a secure bond, supplemented with mechanical screws. Do not use silicone adhesives, as they do not provide the necessary structural hold.
Can the panel be finished with metallic or gold-leaf paints?
Yes, the smooth, non-porous primed surface easily accepts metallic, gold-leaf, or traditional acrylic paints, allowing you to highlight the intricate 3D details of the Ottoman coat of arms.
