Polyurethane Decorative Corbel and Support Bracket
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Carved detail, classic motif |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 75 × 95 × 155 mm |
| Weight | 0.09 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (46 KB)
Similar Products(Architectural Bracket Corbel)

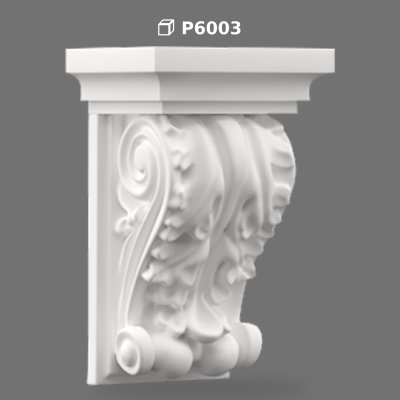

The P6003 Polyurethane Decorative Corbel serves as a refined architectural element designed to introduce classical depth and structural character to both interior and exterior spaces. This compact support bracket replicates the grandeur of historical masonry and woodwork, making it a favored choice among European architects and restoration professionals seeking to elevate modern facades or classic interiors.
Measuring 75 mm in width, 95 mm in depth, and 155 mm in height, this corbel is crafted from high-density polyurethane (PU) with a density of 150-220 kg/m³. This high-performance material mimics the density and workability of natural wood but remains highly resistant to moisture, rot, and insect damage. Its closed-cell structure ensures water absorption remains under 1%, preventing warping, cracking, or swelling; dimensional stability has been tested between -20 °C and +70 °C.
Visually, the P6003 features a beautifully detailed side volute or scroll motif that frames a lush, deeply carved acanthus leaf cascading down the front face. The base terminates in a dual scroll detail, providing a balanced, symmetrical weight distribution. This high-fidelity 3D molding captures the crisp lines and deep undercuts typically associated with hand-carved stone or fine plasterwork, without the prohibitive weight or fragility.
This decorative bracket is exceptionally versatile. In interior applications, it can be utilized under decorative shelving, fireplace mantels, or as a supportive accent beneath ceiling beams and door pediments. Externally, it functions beautifully under roof eaves, balcony projections, or window sills to enhance the architectural rhythm of villa facades and premium commercial properties. When paired with pilasters or classical columns, these corbels act as transition blocks that bridge the gap between vertical supports and horizontal lintels, creating a cohesive classical order.
Installation is straightforward and far less labor-intensive than plaster or stone. The lightweight element is secured using a polyurethane (PU) assembly adhesive combined with mechanical screws for permanent stability. The factory-applied primer coat prepares the surface for painting; however, because paint manufacturers do not guarantee adhesion without their proprietary primers, an additional primer coat remains optional and at the customer's discretion. For outdoor applications, finishing with a high-quality UV-resistant paint is mandatory to prevent yellowing over time. Compared to heavy gypsum or fragile timber, this synthetic alternative offers superior durability, ensuring that the intricate carvings remain crisp and undamaged for decades with minimal maintenance.
- The P6003 corbel is highly adaptable for diverse architectural applications
- Indoors, it acts as an elegant support accent under wooden or glass wall shelves, fireplace mantels, and decorative kitchen range hoods
- It is also ideal for framing doorways, windows, and wide archways, serving as a transition piece between the trim and wall
- In commercial settings like hotel lobbies, boutique offices, or upscale restaurants, it can be placed beneath bar counters or ceiling beams to enhance structural aesthetics
- Externally, when finished with UV-stable paint, it is used under roof eaves, balcony overhangs, and window ledges on residential villas and historical renovations to add depth and shadow lines
- Ensure the installation surface is clean, dry, and free of dust
- Measure and mark the exact placement
- Apply a generous bead of polyurethane (PU) assembly adhesive to the mounting backplate of the corbel
- Press firmly against the wall or substrate
- Due to its lightweight nature, temporary support or mechanical fastening with screws is required while the adhesive cures
- Once fixed, fill the screw holes and any perimeter gaps using an exterior-grade acrylic filler or joint paste
- Lightly sand the joints with 180-220 grit sandpaper once dry
- While the product comes factory-primed, applying an additional primer is optional based on your paint manufacturer's guidelines
- Finish with two coats of high-quality water-based or synthetic paint
- For outdoor installations, UV-resistant paint is mandatory
- The high-density molded surface requires very little maintenance
- For interior installations, occasional dusting or wiping with a damp, soft cloth is sufficient
- Avoid using harsh chemical solvents, abrasive cleaners, or stiff brushes that might scratch the paint layer
- For exterior applications, perform a periodic visual inspection of the paint finish
- If installed outdoors, high-pressure water washing can be used safely, provided the paint layer remains intact
- Reapply UV-resistant topcoats as necessary depending on local climate exposure to protect the polyurethane substrate from UV-induced discoloration
Can the P6003 corbel be used for outdoor applications?
Yes, the P6003 is fully suitable for outdoor use. Assess water and moisture exposure using the product technical data, surface finish and installation details. However, to prevent yellowing from UV exposure, it must be finished with a high-quality UV-resistant exterior paint.
What is the weight capacity of this decorative bracket?
This product is designed primarily as a decorative element. While high-density polyurethane is highly durable and structurally rigid, we recommend that any load-bearing shelves or heavy mantels be independently supported by internal wall studs or metal brackets, using the corbel as an ornamental cover.
Is an additional primer required before painting?
The corbel comes pre-primed from the factory, which prepares the surface for standard topcoats. However, since paint manufacturers typically do not guarantee paint adhesion without their own specific primers, applying an additional primer coat is optional and left to the installer's discretion.
How does polyurethane compare to traditional plaster or wood corbels?
Unlike gypsum plaster, polyurethane is lightweight, impact-resistant, and will not chip or crack during transport or installation. Unlike wood, it has low water absorption (below 1%), warps, splits, or attracts wood-boring insects, making it significantly more durable and low-maintenance over time.
What adhesive should be used for mounting?
For secure and permanent mounting, you must use a high-quality polyurethane (PU) assembly adhesive. Standard silicone adhesives do not provide the necessary structural bond. Mechanical fastening with screws is also required to ensure safety and stability.
