Polyurethane Decorative Corbel Bracket P6009 Wall Support
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Acanthus-leaf, volute motif, relief-worked classic details |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 120 × 158 × 240 mm |
| Weight | 0.42 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (46 KB)
Similar Products(Architectural Bracket Corbel)
















































The P6009 is a high-performance architectural support element designed to introduce classic structural aesthetics to interior walls, exterior facades, and decorative load-bearing points. This decorative corbel combines structural-grade durability with historical design details, offering a reliable alternative to heavy plaster or decay-prone wood brackets in premium construction projects.
Measuring 120 mm in width, 158 mm in depth, and 240 mm in height, this medium-scaled bracket is molded from rigid polyurethane with a density of 150-220 kg/m³. This specific density provides a structural hardness comparable to wood while keeping the product exceptionally lightweight. Engineered with a closed-cell structure, the material limits water absorption to under 1% and dimensional stability has been tested between -20 °C and +70 °C without warping, shrinking, or cracking.

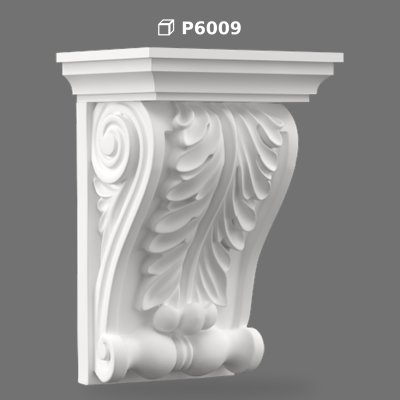

Visually, the P6009 features a rich composition of classical Greek and Roman motifs. The face of the bracket is adorned with deeply carved acanthus leaves, cascading down to meet a lower roll ornament. The sides are framed by elegant, sweeping volute scrolls that curl symmetrically at the top, creating a dramatic architectural silhouette. This level of crisp, deep relief is achieved through precision molding, capturing fine details that are difficult and costly to replicate in traditional stone or woodcarving.
This versatile architectural element is suitable for both interior and exterior applications. It can be installed beneath balconies, roof eaves, window sills, or decorative lintels to simulate classical load-bearing support on exterior facades. Indoors, it serves as an excellent decorative accent beneath fireplace mantels, floating wall shelves, door openings, or ceiling beams in residential, hotel, or commercial projects.
Installing the P6009 is direct and efficient. Secure placement requires applying a continuous line of polyurethane (PU) mounting adhesive, followed by mechanical fastening with screws for absolute stability. Once mounted, seams and screw holes are filled, sanded, and ready for paint. Unlike gypsum plaster, which is fragile and heavy, or timber, which rots and splits over time, this synthetic alternative offers lasting stability with minimal structural load.
The corbel comes pre-treated with a factory-applied primer coat that prepares the surface for final painting. While this primer simplifies the process, applying a specialized primer recommended by your paint manufacturer is optional but encouraged to ensure full paint adhesion warranty. For outdoor installations, a high-quality, UV-resistant paint is mandatory to prevent natural yellowing from sunlight exposure.
- The P6009 polyurethane corbel is highly adaptable for a wide range of interior and exterior design scenarios
- Externally, it is ideal for placement under roof overhangs, balcony ledges, window canopies, or along horizontal cornices to create a sense of classical support and architectural depth on villa or commercial facades
- Inside, it can be utilized to frame archways, support mock ceiling beams, or flank fireplace surrounds
- It also functions beautifully as a decorative support under heavy wooden wall shelves in high-end residential libraries, hotel lobbies, or classic restaurants
- Ensure the mounting surface is clean, dry, and free of dust
- Measure and mark the exact position for the corbel
- Apply a generous bead of polyurethane (PU) mounting adhesive to the rear and top contact surfaces of the bracket
- Press the corbel firmly against the wall and secure it mechanically using screws through pre-drilled holes to ensure stability while the adhesive fully cures
- Fill screw heads and joints with a high-quality acrylic filler or exterior-grade joint compound
- Once dry, sand smooth using 180-220 grit sandpaper
- Apply a suitable topcoat of paint (UV-resistant paint is mandatory for outdoor applications)
- The P6009 requires minimal maintenance due to its moisture-resistant, closed-cell construction
- For indoor installations, occasionally dust the intricate acanthus leaf carvings or wipe with a damp cloth
- For outdoor installations, perform an annual visual inspection of the paint layer
- If used on exterior facades, the bracket can be washed with low-pressure water from a distance
- Avoid using harsh chemical solvents or high-pressure washers directly on the surface, as this may damage the protective paint coating
Can the P6009 corbel be used on exterior building facades?
Yes, the P6009 is fully suitable for outdoor architectural use. Its closed-cell rigid structure ensures low water absorption (below 1%), making it highly resistant to rot, decay, and insect damage. However, because raw polyurethane can yellow under sunlight, applying a UV-resistant exterior paint is mandatory to protect the product and maintain its aesthetic appearance over time.
What is the load-bearing capacity of this decorative bracket?
The P6009 is designed primarily as a decorative architectural element rather than a load-bearing structural support. While the high-density material (150-220 kg/m³) is physically tough and impact-resistant, it should not be relied upon to support heavy structural loads, such as actual concrete balconies or structural beams, without internal steel or timber load-bearing frameworks.
How does this product compare to traditional plaster or wood corbels?
Compared to gypsum plaster, the P6009 is significantly lighter, making installation safer and faster, and it will not crack or chip upon impact. Compared to wood, it offers good resistance to moisture, mold, and termites, helping to limit warping, rot, and splitting over time, even when exposed to harsh outdoor climates.
What type of adhesive and fasteners should be used for installation?
You must use a premium polyurethane (PU) mounting adhesive on all contact surfaces to ensure a strong chemical bond. Standard silicone adhesives are not recommended. Additionally, mechanical fastening with screws is mandatory to hold the corbel securely in place while the adhesive fully cures and to guarantee long-term safety.
Does the corbel require an additional primer before painting?
The P6009 comes with a factory-applied white primer that prepares the surface for painting. However, because paint manufacturers do not guarantee paint adhesion on pre-primed surfaces without their own system, applying an additional primer compatible with your chosen paint is optional but recommended to secure the paint warranty.
