Polyurethane Wall Panel Moulding and Border Trim Profile
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Smooth, flat |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 20 × 2400 × 30 mm |
| Weight | 0.32 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (46 KB)
Similar Products(Wall Panel Trim Moldings)
















The P85403 polyurethane trim profile is a sophisticated wall and ceiling moulding designed to bring structural depth and clean architectural definition to modern interiors. Featuring a compact 30 mm width and a subtle 20 mm projection, this sleek profile serves as an exceptionally versatile design element. Unlike bulky traditional mouldings, its slender silhouette is engineered to create delicate wainscoting frames, geometric wall paneling, and refined transitions that respect the scale of contemporary living spaces.
Manufactured from high-density rigid polyurethane (PU) with a density rating of 150-220 kg/m³, the P85403 offers the solid, tactile feel of premium hardwood combined with superior mechanical durability. This advanced material composition ensures outstanding resistance to impacts, scratching, and daily wear. Furthermore, with a closed-cell structural configuration, its water absorption rate remains below one percent. This makes the profile highly resistant to swelling, rot, warp, or mold, supporting long-term dimensional stability even in challenging humid environments.
Visually, the P85403 profile exhibits a smooth, flat face accented by a delicate stepped-bead edge. This asymmetrical detail creates a subtle shadow line when mounted, adding visual interest without cluttering the wall surface. Delivered with a factory-applied white primer coat, the profile is optimized for seamless paint adhesion. While this primer provides an excellent base for most high-quality water-based or synthetic topcoats, an additional primer coat may be applied at your discretion to satisfy specific paint manufacturer warranty guidelines.

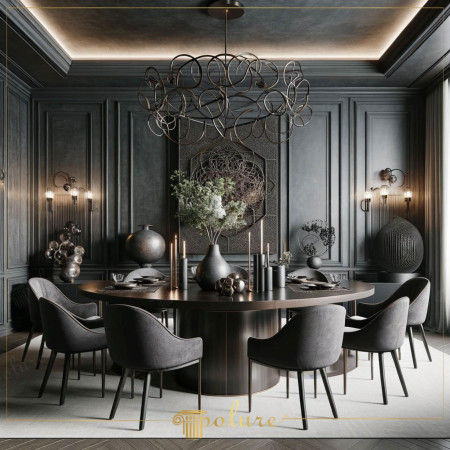

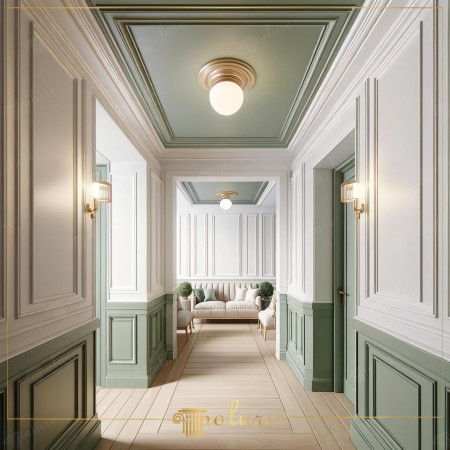

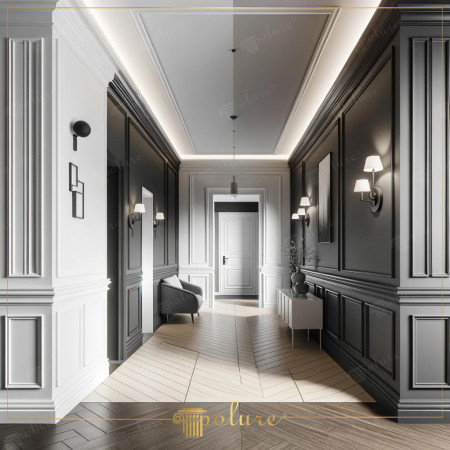

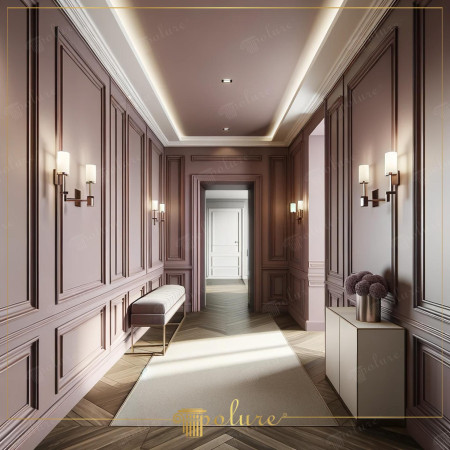

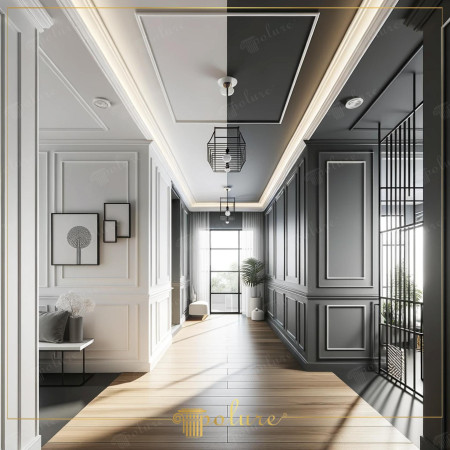

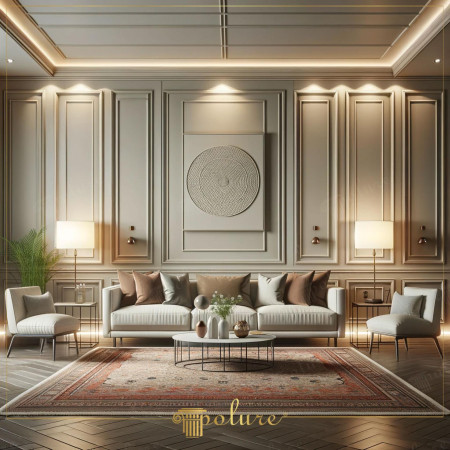

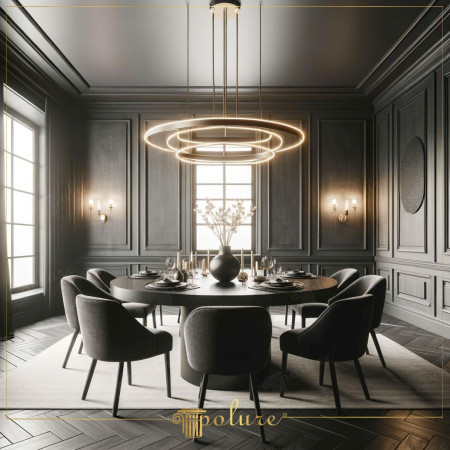

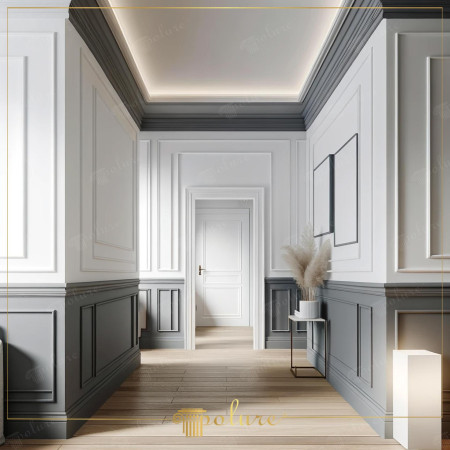

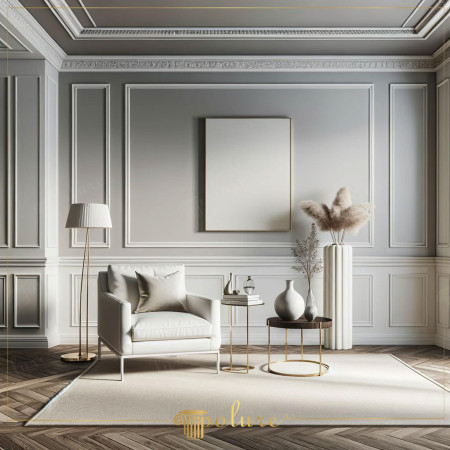

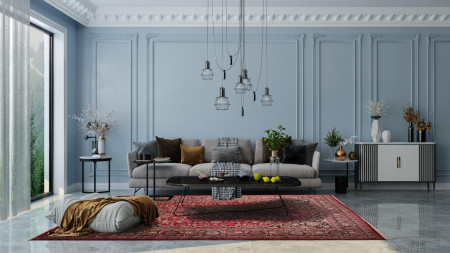

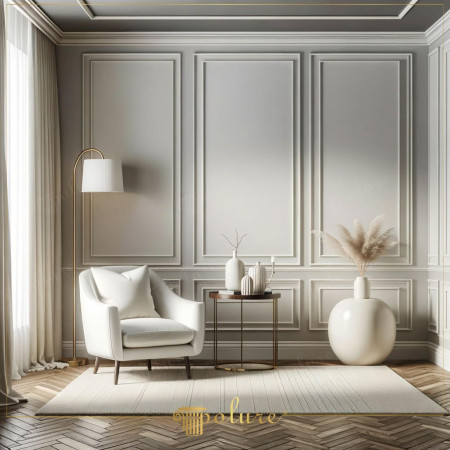

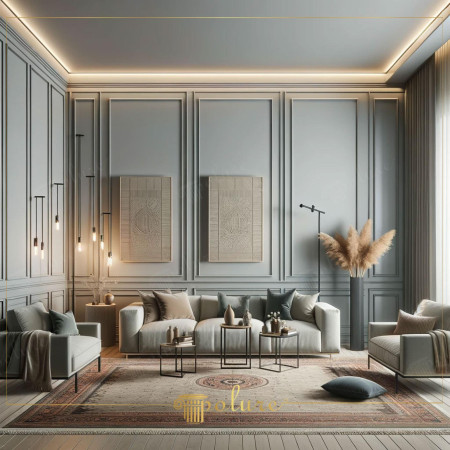

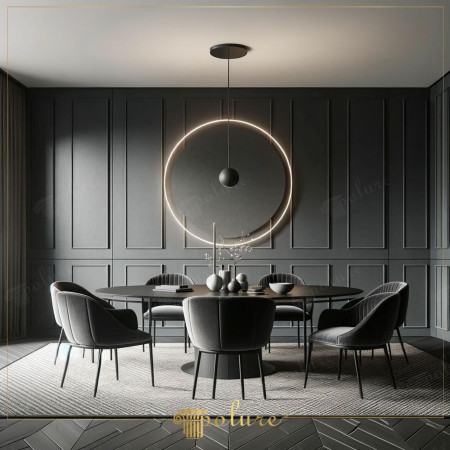

This multi-functional moulding profile excels in a wide array of decorative applications. It is the perfect choice for executing precise, symmetrical wall panels (mock-wainscoting) in dining rooms, master bedrooms, and welcoming entrance halls. Additionally, it can be utilized horizontally as a refined chair rail, vertically to frame custom mirrors and artwork, or as a decorative trim to upgrade flat cabinet doors and wardrobe facades. Its clean lines make it equally suitable for minimalist residential designs and high-traffic commercial spaces like boutique retail stores, offices, and hotel corridors.
Installing the P85403 is efficient, clean, and highly precise. The lightweight nature of the high-density polyurethane ensures that the profiles can be easily handled and cut at perfect 45-degree angles using standard fine-toothed hand saws. For mounting, the application of polyurethane (PU) mounting adhesive along the rear bonding channels is required, supplemented by temporary brads or screws to ensure absolute mechanical stability during the adhesive's curing cycle. Once cured, joint lines and fastener points are easily concealed with acrylic filler, followed by a light sanding with 180-220 grit paper to achieve a flawless, paint-ready finish.
- With its slim 30mm width and 20mm thickness, the P85403 profile is exceptionally well-suited for high-end decorative wall framing and custom paneling layouts (wainscoting)

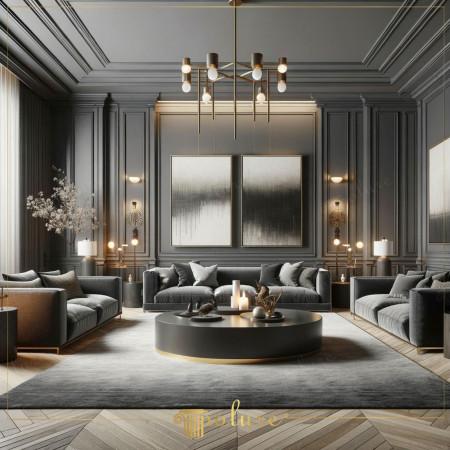

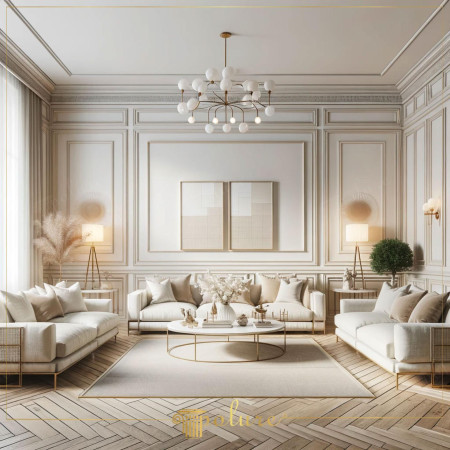

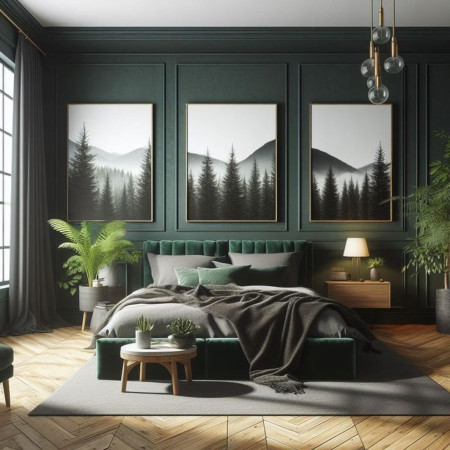

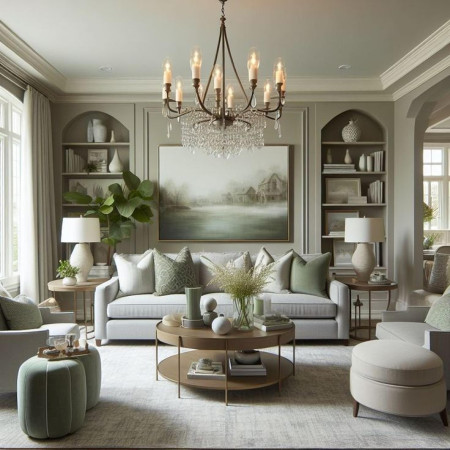

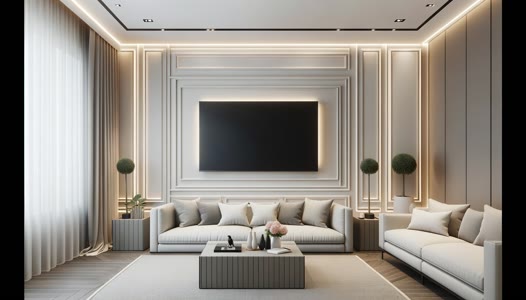

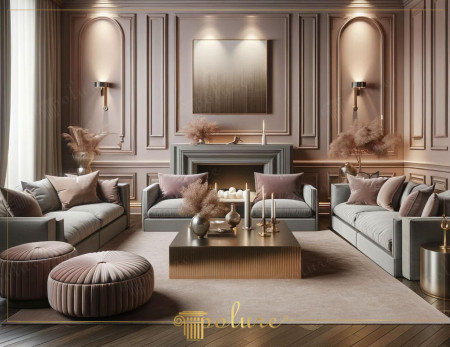

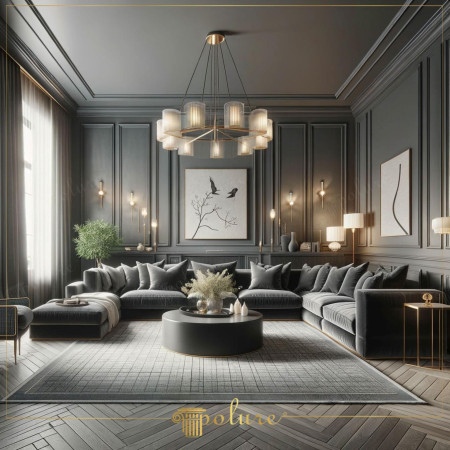

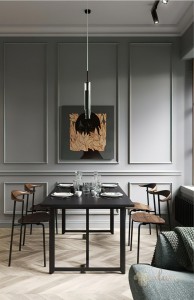

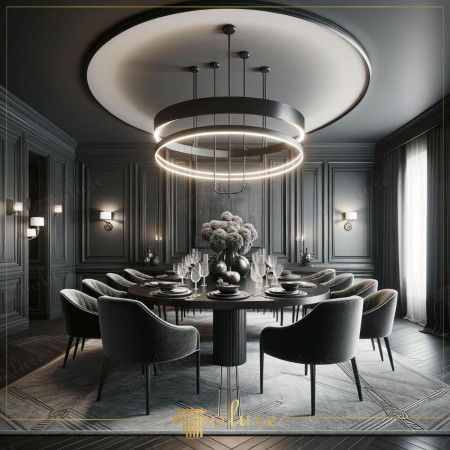

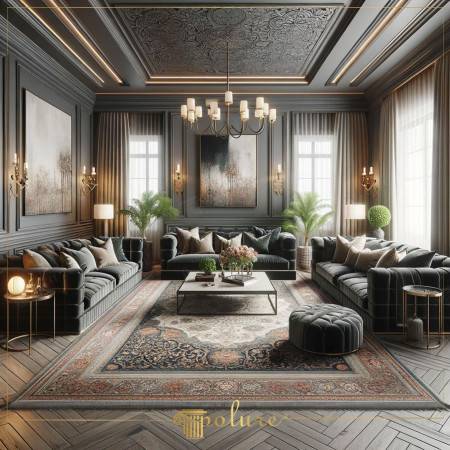

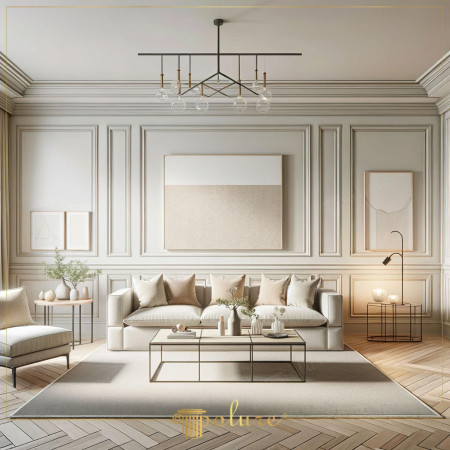

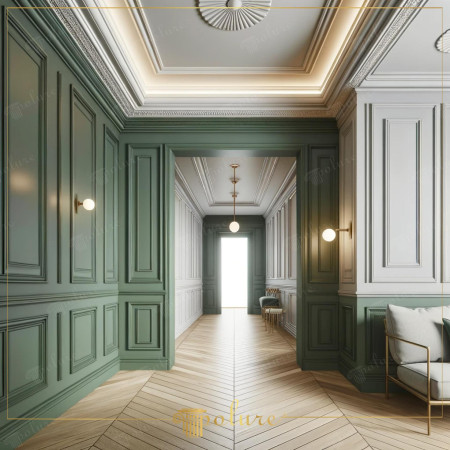

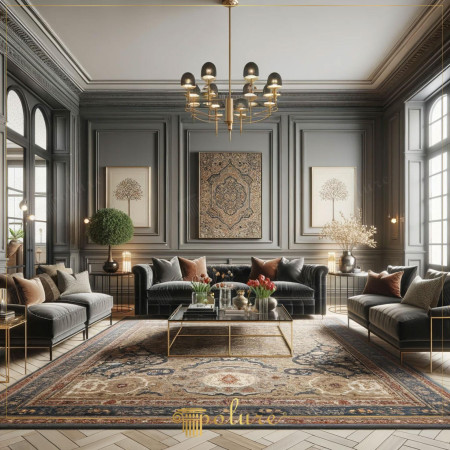

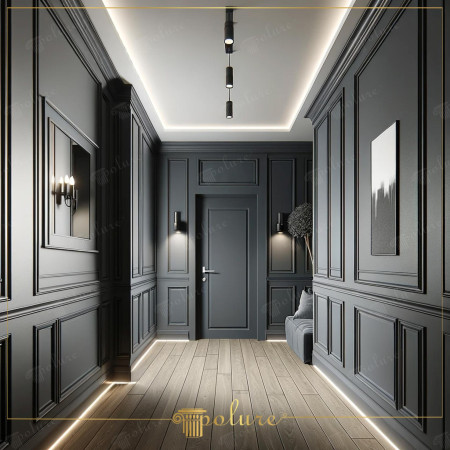

- In residential settings, it is ideal for creating elegant geometric panel configurations on large living room, dining room, or bedroom walls, adding classical structural interest to plain drywall

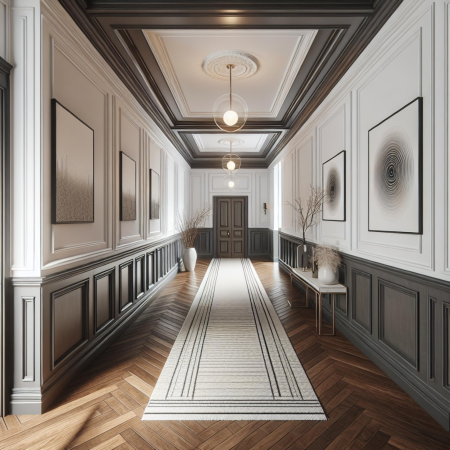

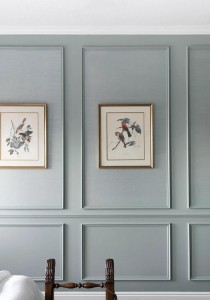

- It is highly effective when used as a horizontal chair rail to divide different paint colors or wallpaper patterns, or vertically to frame artwork, mirrors, and wall-mounted lighting fixtures
- In high-humidity areas like bathrooms, kitchens, or laundry rooms, its water-resistant nature makes it a perfect decorative border

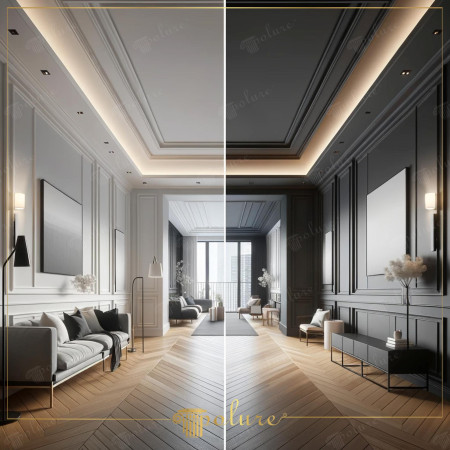

- For commercial applications, it elevates the walls of hotel lobbies, boutique retail stores, offices, and restaurants
- It can also be applied to furniture, serving as an upscale trim for cabinet doors, wardrobes, or decorative headboards
- When painted with UV-resistant coatings, it can be used on exterior facades as a delicate accent trim
- Ensure the application surface is clean, dry, flat, and free of dust or grease
- Measure and cut the P85403 profiles using a fine-toothed hand saw and a miter box for clean, precise 45-degree corner joints
- Apply a continuous bead of polyurethane (PU) mounting adhesive along the entire length of the back bonding surfaces
- Press the profile firmly against the wall and temporarily secure it with small finishing nails or screws to maintain mechanical stability while the adhesive cures
- Do not use silicone adhesives
- Once the adhesive is fully cured, fill all joints, seams, and fastener holes with a high-quality acrylic filler
- After the filler dries completely, sand the joints smoothly using 180-220 grit sandpaper
- Finally, apply your choice of water-based or synthetic topcoat paint
- For outdoor installations, a UV-resistant exterior paint is mandatory to protect the material from sunlight degradation
- Maintaining the P85403 profile is simple and hassle-free
- For routine cleaning, dust the moulding with a soft microfiber cloth or wipe it down with a damp cloth
- Because of its excellent moisture resistance, mild household detergents can be used to remove any smudges or dirt; however, avoid highly abrasive cleaners, harsh chemicals, or stiff brushes that could damage the painted finish
- For outdoor installations, we recommend a periodic visual inspection of the paint layer every few years, applying a fresh coat of UV-resistant paint when necessary to maintain protection against solar radiation
Can the P85403 profile be used in humid areas like bathrooms?
Yes, absolutely. Because of its closed-cell rigid polyurethane structure, this profile has a water absorption rate of less than one percent. It will not rot, swell, warp, or support mold growth, making it a highly durable and superior alternative to wood or MDF mouldings in high-humidity areas like bathrooms, kitchens, and wellness spaces.
How is this trim profile painted?
The P85403 profile comes with a factory-applied white primer coat that provides an excellent base for paint adhesion. It can be painted with most water-based or synthetic topcoats. Please note that paint manufacturers often require their own proprietary primers to guarantee topcoat performance; therefore, applying an additional primer layer before the topcoat is optional but recommended depending on your paint choice.
What is the best adhesive for installing this moulding?
For a secure and permanent bond, you must use a high-quality polyurethane (PU) mounting adhesive. Standard silicone-based adhesives are not suitable, as they do not provide the structural hold required for rigid polyurethane profiles. Mechanical fastening with small screws or brad nails is also necessary to keep the profile stable while the adhesive cures.
How does this product compare to traditional plaster or wood mouldings?
Unlike fragile plaster, this high-density polyurethane moulding is lightweight, highly impact-resistant, and will not chip or crack during transport or installation. Compared to wood or MDF, it is moisture-resistant and helps reduce the risk of rot and insect damage, ensuring long-lasting durability with exceptionally sharp design details.
Is the P85403 profile suitable for outdoor use?
Yes, it is suitable for outdoor decorative framing. However, because unpainted polyurethane can gradually discolor when exposed to solar radiation, you must paint the profile with a premium, UV-resistant exterior paint to protect it from weather elements and ensure color stability.
