Polyurethane Exterior Architrave and Large Cornice Moulding
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Smooth, flat |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Service Temperature | -100 °C / +80 °C |
| Fire Class | B2 (flame retardant) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 542 × 2400 × 480 mm |
| Weight | 9.29 kg |
| Sales Unit | piece |
Details
Similar Products(Window and Door Casings)
The P1460M10 architectural profile is a large-scale exterior framing element designed to deliver exceptional depth and character to modern and classical European building facades. As a high-performance alternative to heavy concrete or fragile plaster, this robust moulding offers structural-grade visual appeal without adding unnecessary weight to the building envelope.
Engineered from high-density rigid polyurethane with a density of 150-220 kg/m³ (production target ~160 kg/m³), this profile measures an impressive 542 mm in width, 480 mm in depth, and comes in standard 2400 mm lengths. Its advanced closed-cell structure guarantees a water absorption rate of less than 1%, ensuring complete resistance to rot, swelling, mold, and warping. It maintains absolute dimensional stability under severe weather conditions, operating flawlessly in temperatures ranging from -100 °C / +80 °C.
Visually, the profile features a sophisticated sequence of geometric steps leading to a deep, sweeping classical curve, finished with a structured dentil block row along the bottom. This complex profile geometry is specifically designed to catch natural sunlight, casting bold, defined shadows that accentuate the grand scale of luxury villas, hotels, and public buildings.
This versatile profile is highly recommended for creating grand window pediments, prominent roofline cornices, or horizontal belt courses that elegantly divide building stories. Indoors, its majestic proportions make it an excellent choice for high-ceilinged lobbies, banquet halls, or premium commercial spaces looking for a dramatic crown transition.
Installation is straightforward but requires professional care. The lightweight profiles are mounted using a high-quality polyurethane (PU) assembly adhesive combined with mandatory mechanical screw fastening to ensure permanent structural bonding. Once secure, joints and screw heads are filled with elastic exterior filler, sanded smooth, and ready for finishing.
The product is delivered with a factory-applied primer coat that readies the surface for painting. While this base layer assists paint adhesion, paint manufacturers generally do not guarantee their coatings unless their proprietary primers are used first; consequently, applying an additional primer is optional and at the discretion of the installer. For all outdoor applications, finishing with a high-quality, UV-resistant topcoat is mandatory to prevent natural weathering and discoloration.
- This large-profile moulding is exceptionally versatile, serving both as a heavy-duty exterior architrave and a grand decorative cornice

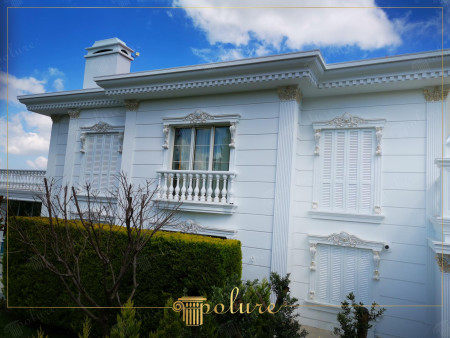

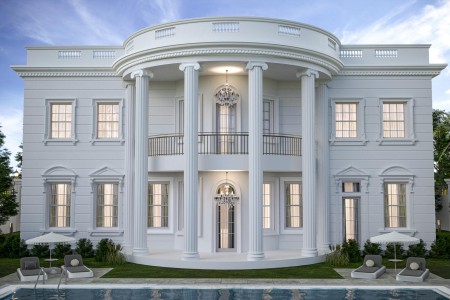

- Outdoors, it is ideal for framing monumental main entrances, creating dramatic window surrounds, or serving as a thick belt course to visually separate different floors of a villa or commercial building
- It is also frequently utilized under roof eaves to form a clean, classical transition between the wall and the roofline
- Indoors, due to its substantial projection of 480 mm, it is best suited for grand scale rooms with high ceilings, such as luxury hotel lobbies, historic restoration projects, spacious exhibition halls, and high-end residential living rooms, where it acts as a striking focal point
- Ensure the mounting surface is clean, dry, and free of dust
- Cut the profiles to the desired length or miter angles (45° for corners) using a fine-toothed saw
- Apply a generous bead of high-quality polyurethane (PU) assembly adhesive along the mounting surfaces of the profile; do not use silicone
- Press the profile firmly into place and secure it mechanically using screws to ensure stability while the adhesive cures
- Fill all joints, seams, and screw holes with an elastic, exterior-grade acrylic filler
- Once dry, sand the filled areas gently with 180-220 grit sandpaper
- While the product is factory primed, applying an additional primer is optional before finishing with two coats of premium UV-resistant paint
- The high-density polyurethane material requires very low maintenance
- For exterior installations, periodically inspect the joint filler and paint coat to ensure weather seal integrity
- The surface can be cleaned safely using low-pressure water and mild detergents; avoid using harsh abrasive chemicals or high-pressure power washers at close range
- In the event of accidental impact damage, the affected area can be easily repaired using standard exterior spackling paste, sanded, and touched up with matching paint
What are the dimensions of P1460M10?
P1460M10 measures 542 × 2400 × 480 mm (width × length × height).
How is P1460M10 installed?
Ensure the mounting surface is clean, dry, and free of dust. Cut the profiles to the desired length or miter angles (45° for corners) using a fine-toothed saw. Apply a generous bead of high-quality polyurethane (PU) assembly adhesive along the mounting surfaces of the profile; do not use silicone. Press the profile firmly into place and secure it mechanically using screws to ensure stability while the adhesive cures. Fill all joints, seams, and screw holes with an elastic, exterior-grade acrylic filler. Once dry, sand the filled areas gently with 180-220 grit sandpaper. While the product is factory primed, applying an additional primer is optional before finishing with two coats of premium UV-resistant paint.
Can P1460M10 be painted?
Yes. The product comes with white 1K acrylic primer; this is a technical base and a topcoat is applied. Before painting, the surface is lightly matted with 180-220 grit.
Can P1460M10 be used outdoors?
Yes. The material absorbs below 1% water and is dimensionally stable between -100 °C / +80 °C; outdoors it must be sealed with an elastic, UV-resistant paint.
How is P1460M10 cleaned?
The high-density polyurethane material requires very low maintenance. For exterior installations, periodically inspect the joint filler and paint coat to ensure weather seal integrity. The surface can be cleaned safely using low-pressure water and mild detergents; avoid using harsh abrasive chemicals or high-pressure power washers at close range. In the event of accidental impact damage, the affected area can be easily repaired using standard exterior spackling paste, sanded, and touched up with matching paint.
What does the price of P1460M10 include?
The list price is 233.51 EUR. The price covers the product only; shipping and installation are separate items and goods are ex-works. Quotations are free and valid for 7 days.
