Polyurethane Carved Decoupe Wall Panel Decorative Grille
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Openwork (carved) pattern, smooth surface |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 705 × 1000 × 30 mm |
| Weight | 1.26 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (245 KB)
Similar Products(Decorative Wall Panels Collection)

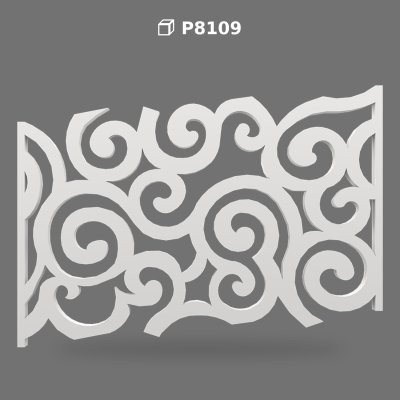

The P8109 openwork polyurethane panel is an engineered decorative element designed to introduce architectural depth and artistic expression to both interior and exterior walls. Featuring a series of interlocking, stylized cloud and scroll motifs, this carved grille balances visual privacy with light transmission. It serves as a modern alternative to traditional fretwork, allowing architects and interior designers to break up large, monotonous surfaces or create semi-private zoning within open-plan layouts.
Constructed with a density of 150-220 kg/m³, this rigid material replicates the structural hardness and crisp detailing of carved wood while remaining exceptionally lightweight. Measuring 705 mm in width, 1000 mm in height, and 30 mm in thickness, the panel does not impose significant static weight on partition walls or suspended ceilings. Its closed-cell composition provides low water absorption, making it resistant to rot, swelling, mold, and insect damage—common vulnerabilities of MDF and timber alternatives.
The visual design of the P8109 model is characterized by flowing, organic curves that echo classical baroque and oriental cloud patterns. The smooth, pre-finished surface provides clean lines and sharp shadow gaps that react beautifully to integrated LED backlighting or natural sunlight. Because the pattern is completely open, it can also function as an ornamental cover for ventilation grilles, radiator cabinets, or custom headboards without blocking airflow.
This decorative panel is highly versatile, finding its place in high-end residential living rooms, commercial boutique hotels, and restaurant dining areas. When used as a partition screen, it defines spaces without closing them off entirely. Outdoors, when coated with a protective UV-resistant layer, it serves as an eye-catching facade ornament, withstands harsh weather conditions, and maintains its structural integrity over decades.
For a durable installation, the panel must be secured using a high-quality polyurethane (PU) assembly adhesive combined with mechanical screws for stability. The factory-applied white primer prepares the surface for finishing; however, applying an additional primer according to your paint manufacturer's guidelines is optional and recommended to secure paint warranties. Once mounted, the seams and screw heads can be filled with acrylic mastic, sanded smooth, and finished with any quality water-based or synthetic topcoat.
- This ornamental openwork panel is designed for diverse functional and aesthetic applications in residential, commercial, and hospitality environments
- Indoors, it serves as an excellent room divider or partition screen in spacious hotel lobbies, office reception zones, and open-concept living rooms, letting light pass while establishing clear spatial boundaries
- It is frequently utilized as a decorative headboard in master suites, an artistic wall insert framed by molding, or as a stylized cover for radiators and air conditioning vents
- Its moisture-resistant properties make it highly suitable for luxury spas, indoor pool lounges, and bathrooms
- When painted with UV-resistant coatings, the panel can be installed on exterior facades, balcony railings, or entrance canopies to create dynamic shadow patterns on building surfaces
- Begin by ensuring the mounting surface is clean, dry, and structurally sound
- Position the P8109 panel and mark its placement
- Apply a generous bead of polyurethane (PU) assembly adhesive to the rear contact points of the panel and press it firmly against the wall
- Mechanical fastening using stainless steel screws is mandatory to ensure safety and long-term stability
- Fill all screw holes and any joints with an exterior-grade acrylic filler or flexible joint compound
- Once dry, sand these areas smooth with 180-220 grit sandpaper
- The panel is supplied with a factory-applied primer; however, applying an additional primer prior to final painting is optional and recommended by paint brands to maintain their coating warranty
- Finish with two coats of premium water-based or synthetic paint, ensuring UV-rated paint is used for any outdoor installations
- Assess water and moisture exposure using the product technical data, surface finish and installation details
- For indoor installations, dust the carved details regularly with a soft microfiber cloth or static duster
- To remove stains or grime, wipe gently with a damp cloth and a mild, non-abrasive household detergent; avoid using acidic, alkaline, or highly concentrated chemical solvents
- For panels mounted on exterior facades, cleaning can be done using low-pressure garden hoses
- We recommend inspecting the painted surface of outdoor panels annually to ensure the UV-protective coating remains intact, performing minor touch-ups when necessary to prevent discoloration from direct sunlight
Can the P8109 carved panel be used in wet areas like bathrooms or pool houses?
Yes. Because it is manufactured from high-density rigid polyurethane, the panel has a closed-cell structure that absorbs less than 1% moisture. It will not warp, swell, rot, or support mold growth, making it ideal for high-humidity environments.
Is it necessary to apply an extra primer before painting?
The panel comes with a factory-applied primer that prepares the surface for paint. However, paint manufacturers often require their own primers to validate their paint warranties. Therefore, applying an additional primer is optional but highly recommended depending on your choice of paint.
How does this polyurethane panel compare to MDF or wooden grilles?
Assess water and moisture exposure using the product technical data, surface finish and installation details. It does not warp or crack over time due to temperature fluctuations, and it arrives pre-primed, saving significant preparation time on site.
What type of adhesive should be used for mounting?
You must use a high-quality polyurethane (PU) assembly adhesive for chemical bonding. Standard silicones or hot glues will not provide a permanent bond. Additionally, mechanical fixing with screws is required for safety.
Can the panel be cut or resized during installation?
Yes, the material can be cut, drilled, and mitered easily using standard woodworking tools like hand saws or miter saws. Any cut edges should be sanded and sealed with primer before painting.
