Polyurethane Geometric Cutout Wall Panel
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Geometric and classic motif, carved (openwork) patterned smooth surface |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 623 × 623 × 25 mm |
| Weight | 1.26 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (48 KB)
Similar Products(Decorative Wall Panels Collection)
The P8141 cutout panel serves as a versatile architectural element designed to introduce structured depth and visual interest to modern and classical spaces. Featuring an open fretwork structure, this decorative screen allows for dynamic light transmission, making it highly effective for zoning, ceiling accents, or feature walls. Its balanced scale provides a striking focal point without overwhelming surrounding interior elements.
Measuring 623x623 mm with a solid 25 mm thickness, the panel is manufactured from high-density rigid polyurethane (150-220 kg/m³). This material mimics the density and tactile quality of hardwood while remaining remarkably lightweight, preventing unnecessary load on drywall or suspended ceiling grids. Engineered with a closed-cell physical structure, the panel exhibits low water absorption (below 1%), ensuring high resistance to rot, swelling, and insect damage in high-humidity environments.

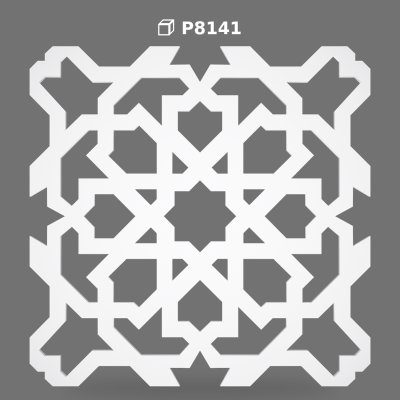

Visually, the P8141 showcases an intricate geometric composition centered around an eight-pointed star motif, characteristic of classic Islamic and Mediterranean architectural patterns. The clean, sharp edges of the cutout design are achieved through precision molding, offering a level of detail and uniformity that is difficult to replicate with manual carpentry. The open framework naturally generates shadows, creating a three-dimensional effect that changes throughout the day depending on the ambient light source.
This decorative grille is suitable for a wide range of residential and commercial applications. Designers frequently specify this model as integrated panels in custom room dividers, decorative radiator covers, illuminated suspended ceiling inserts, or ornamental headboard backdrops in hotel suites. When sealed with appropriate coatings, it can also be utilized on exterior facades to create decorative window screens or accent friezes, with dimensional stability tested across -20 °C / +70 °C.
Installation requires preparing a clean, flat, and dry substrate. The panel is mounted using a premium polyurethane (PU) assembly adhesive combined with temporary or permanent mechanical screw fasteners for maximum safety. The product is delivered with a factory-applied white primer coat that prepares the surface for finishing. Because paint brands often condition their warranty on the use of proprietary primers, applying an additional primer coat is optional and remains at the discretion of the installer. Final finishing can be executed with standard water-based or synthetic topcoats, though UV-resistant formulations are mandatory for any outdoor installation.
- This geometric cutout panel is highly adaptable for both interior and exterior architectural designs
- Indoors, it serves as an excellent semi-private partition screen in open-plan hotel lobbies, restaurants, and office workspaces
- It can be framed to create custom sliding doors, decorative radiator enclosures, or ornamental ceiling grilles that integrate with LED backlighting systems
- In residential spaces, it functions beautifully as a feature wall backdrop behind beds or television units
- For outdoor applications, it can be mounted onto exterior villa walls or garden pavilions as decorative sunscreens and architectural accents, provided it is finished with a suitable UV-resistant exterior paint
- Ensure the installation surface is dry, clean, and free from dust or grease
- Apply a generous bead of polyurethane (PU) assembly adhesive along the contact edges of the panel
- Press the panel firmly against the wall or ceiling substrate and secure it mechanically using screws to ensure stability while the adhesive cures
- Once the adhesive has fully set, fill the screw holes and any joints with a high-quality acrylic filler
- After the filler dries, sand the surfaces smooth using 180-220 grit sandpaper
- The panel comes factory-primed; however, applying an additional primer coat is optional based on your paint manufacturer's guidelines
- Finish with two coats of high-quality water-based or synthetic paint
- For outdoor projects, a UV-resistant topcoat is mandatory
- Maintenance of the polyurethane panel is simple and requires minimal effort
- Dust the geometric openings regularly with a soft duster or wipe clean with a slightly damp microfiber cloth
- Avoid using harsh abrasive pads, solvent-based cleaners, or strong acids, as these can damage the paint finish
- For outdoor installations, inspect the painted surface annually for any UV degradation or physical wear
- If the panel gets scratched, it can be easily repaired by applying a small amount of lightweight acrylic putty, sanding it smooth once dry, and applying a matching spot-paint touch-up
Can the P8141 cutout panel be installed in outdoor environments?
Yes, the panel is highly suitable for outdoor use. Made from high-density rigid polyurethane, it features a closed-cell structure with less than 1% water absorption, meaning it will not warp, rot, or degrade when exposed to rain or humidity. However, to prevent yellowing from sun exposure, applying a UV-resistant exterior paint is mandatory.
What are the structural advantages of polyurethane over wood or plaster fretwork?
Polyurethane is significantly lighter than plaster, reducing structural strain on ceilings and walls while being shatter-resistant. Unlike MDF or natural wood, it has low water absorption (below 1%), meaning it will not swell, crack, or attract termites, making it perfect for bathrooms, kitchens, and outdoor facades.
Is it necessary to apply an extra primer before painting the panel?
The P8141 panel is delivered with a factory-applied matte white primer that is ready for topcoating. However, because many paint manufacturers require their own specialized primers to honor their paint warranties, applying an additional primer coat is optional and depends on the specific paint system you choose to use.
How do I secure this panel to a ceiling or wall safely?
For a secure and permanent installation, you must use a high-quality polyurethane (PU) assembly adhesive applied to all contact surfaces. In addition to the adhesive, mechanical fastening with screws is required to hold the panel firmly in place while the adhesive cures, ensuring long-term structural safety.
Can this panel be customized or cut to fit a smaller space?
Yes, polyurethane behaves similarly to hardwood when it comes to machining. You can easily cut, trim, or miter the edges of the panel using standard woodworking hand saws or power saws. Any cut edges can be sanded smooth and finished with acrylic putty before painting.
