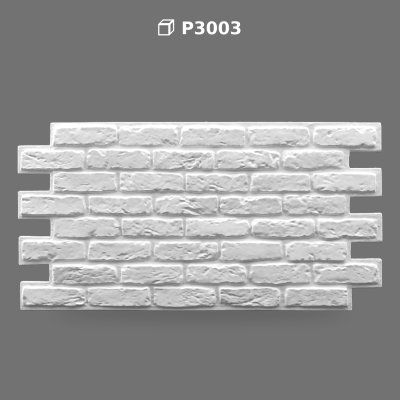

Polyurethane Interlocking Brick Effect Wall Panel
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Openwork carved detail, relief-worked and three-dimensional pattern |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Dimensions | 652 × 1248 × 33 mm |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (178 KB)
Similar Products(Decorative Wall Panels Collection)
The P3003 cladding panel offers an innovative way to achieve the rustic appeal of traditional brickwork without the structural load and labor-intensive installation of real masonry. Designed as a modular wall element, this panel provides an authentic brick texture that instantly enhances the architectural character of any space. Its lightweight design ensures easy handling, making it a preferred choice for fast-track commercial fit-outs and high-end residential renovations.
Manufactured from high-density rigid polymer with a density of 150-220 kg/m³, the panel matches the surface hardness of wood while remaining incredibly lightweight. With dimensions of 652x1248 mm and a substantial thickness of 33 mm, it creates a pronounced three-dimensional depth. The material exhibits exceptional dimensional stability, resisting warping, shrinking, or expanding under temperature fluctuations ranging from -20 °C / +70 °C. Assess water and moisture exposure using the product technical data, surface finish and installation details.
Visually, the P3003 features a carefully engineered staggered edge design that allows individual panels to interlock seamlessly. This layout hides vertical seams, resulting in a continuous, natural brick pattern across expansive surfaces. The face of the panel replicates weathered masonry, complete with realistic mortar lines, rough textures, and subtle surface variations. When paired with directional or wash lighting, these physical reliefs cast natural shadows that emphasize the 3D brick aesthetic.
This versatile panel is highly suitable for both interior and exterior applications. Indoors, it serves as an excellent feature wall behind television units, a textured backdrop in restaurant dining rooms, or a rustic accent in hotel lobbies. Outdoors, it can be applied to villa facades, garden walls, or commercial entryways. For any exterior usage, applying a high-quality UV-resistant topcoat is mandatory to prevent the underlying material from yellowing under direct sunlight.
Compared to heavy concrete brick slips or fragile EPS foam alternatives, this high-density polymer panel offers superior impact resistance and simplified installation. The panels arrive with a factory-applied primer coat that prepares the surface for painting. While this factory coating facilitates direct painting, applying an additional primer is optional and depends on your chosen paint brand's warranty specifications; the manufacturer does not assume liability for paint adhesion. Installation requires securing the panels with a polyurethane (PU) mounting adhesive and reinforcing them mechanically with screws.
- The P3003 brick effect panel is ideal for creating textured feature walls in both residential and commercial spaces
- In residential projects, it is commonly used to decorate living room accent walls, fireplace surrounds, home offices, and bedroom headboard backdrops
- For commercial interiors, it adds a warm, industrial, or rustic charm to restaurant dining areas, cafe walls, retail store backdrops, and boutique hotel lobbies
- Assess water and moisture exposure using the product technical data, surface finish and installation details
- When installing indoors, integrating warm LED spotlights or track lighting above the panels is highly recommended to cast dramatic shadows over the realistic brick reliefs, enhancing the depth and texture of the room
- Ensure the application surface is clean, dry, and structurally sound
- Align the interlocking panels horizontally to plan the layout
- Apply a generous amount of polyurethane (PU) mounting adhesive to the back edges of the panel
- Press the panel firmly onto the wall and secure it mechanically using screws through the mortar joints for permanent stability
- Fill the joints, interlocking seams, and screw heads with a premium acrylic filler or exterior-grade joint compound
- Once dry, gently sand the filled areas with 180-220 grit sandpaper to achieve a seamless surface
- The panel comes pre-treated with a factory primer; however, applying an additional primer coat is optional and should be decided based on the paint manufacturer's guidelines
- Finish by applying two coats of water-based or synthetic paint
- For outdoor installations, a UV-resistant exterior paint is strictly required
- Maintaining the P3003 wall panel is simple and straightforward
- For interior installations, regularly remove dust using a soft brush, duster, or a vacuum cleaner equipped with a soft brush attachment
- To remove surface smudges or dirt, wipe gently with a damp microfiber cloth and a mild, non-abrasive detergent
- Avoid using harsh chemical solvents, abrasive scrubbing pads, or strong acids, as these can degrade the protective paint layer
- For outdoor installations, the panels can be rinsed with low-pressure garden hose water, but high-pressure power washers should never be used
- Periodically inspect exterior painted surfaces and reapply a UV-protective topcoat when necessary to preserve color integrity
Can the P3003 panel be safely installed on exterior walls?
Yes, the P3003 panel is fully suitable for outdoor use. Assess water and moisture exposure using the product technical data, surface finish and installation details. However, because raw polyurethane can yellow under UV light, you must apply a high-quality UV-resistant exterior paint to protect the panel from sun damage.
What adhesive should be used to mount these interlocking panels?
You must use a high-quality polyurethane (PU) mounting adhesive to bond the panels to the wall surface. Do not use standard silicone adhesives, as they do not provide the necessary structural bond. For a safe and permanent installation, mechanical fastening with screws is also required alongside the adhesive.
Is it necessary to apply an extra coat of primer before painting?
The panels are shipped with a factory-applied primer that prepares the surface for topcoat painting. While this makes direct painting possible, applying an additional primer is optional. Many paint manufacturers require their own specific primers to honor paint durability warranties, so we recommend checking your paint brand's instructions.
How do these panels compare to traditional brick slips?
Traditional brick slips are heavy, brittle, and require complex, messy mortar installations. The P3003 panel is extremely lightweight, reducing structural load, and features interlocking edges that allow for a rapid, clean installation. It also provides excellent durability and aesthetic depth due to its closed-cell polymer structure.
How do you hide the joints between the interlocking panels?
During installation, the panels fit together tightly along their staggered, interlocking edges. Any remaining minor gaps at the seams, as well as the screw heads, should be filled using a high-quality acrylic joint filler. Once dry, sand the filled areas smooth with fine sandpaper before painting to create a completely seamless brick wall appearance.
