Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Fluted body |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Diameter | Ø 50 mm |
| Dimensions | 50 × 500 × 2400 mm |
| Weight | 6.72 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (141 KB)
Similar Products(Architectural Pilaster Columns)

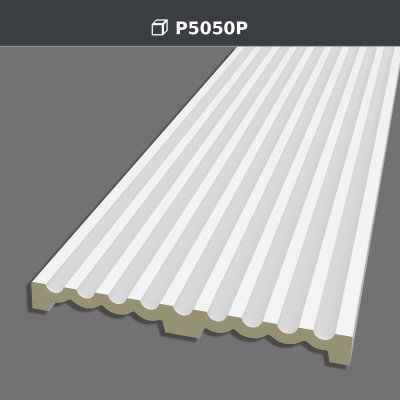

The P5050P fluted pilaster column offers an exceptional way to introduce classical architectural rhythm and structural elegance to flat wall surfaces. Designed as a flat-backed, surface-mounted columnar element, this architectural feature mimics the traditional look of embedded columns without the structural weight or complexity. Ideal for high-end residential renovations and commercial projects, it brings a neoclassical aesthetic to both modern and traditional architectural frameworks.
Measuring 50 mm in depth, 500 mm in width, and 2400 mm in height, this broad pilaster profile is manufactured from high-density rigid polyurethane (150-220 kg/m³). This advanced material matches the density and sandability of natural wood while offering far superior durability. With a water absorption rate under 1% and dimensional stability tested between -20 °C and +70 °C, the column maintains its precise dimensions and resists warping, shrinking, and cracking, even when exposed to severe weather conditions.
Visually, the P5050P is distinguished by its deeply recessed, parallel fluting along the vertical body. These vertical grooves create a dynamic interplay of light and shadow, visually lengthening the wall and adding architectural height to any room or facade. The clean, sharp edges of the fluted profile showcase the high-fidelity molding process, making it a perfect match for ionic or corinthian capitals and plinths to construct a complete, majestic column assembly.
This versatile architectural element is widely specified by European designers for grand entryways, luxury hotel lobbies, residential living rooms, and exterior villa facades. Placed on either side of doorways, windows, or integrated as decorative pilasters along expansive hallway walls, it defines spaces with a sense of order and prestige. When painted with UV-resistant coatings, it serves as a stunning focal point on exterior porticos and facades.
Installation is highly efficient compared to heavy gypsum or stone alternatives. The lightweight nature of the material ensures minimal structural load. Mounting requires a clean, dry surface, applying polyurethane (PU) mounting adhesive to the back, followed by mandatory mechanical fastening with screws. Once secured, joints and screw heads are filled, sanded, and ready for painting. Supplied with a factory-applied primer that prepares the surface, an additional primer coat can be applied based on your paint manufacturer's guidelines before applying two coats of water-based or synthetic paint.
- The P5050P fluted pilaster column is a versatile architectural element designed to frame, divide, and elevate vertical surfaces
- In interior design, it is ideal for creating grand focal walls in spacious living rooms, formal dining areas, and hotel lobbies
- Designers frequently place a pair of these columns to frame a fireplace mantel, a large mirror, or a central art piece, instantly establishing a neoclassical focal point
- It is also highly effective for framing wide interior portals, archways, and doorways, replacing standard casing with a more monumental structure
- For exterior applications, the P5050P serves as a majestic facade element
- When treated with UV-stable exterior paint, it can be installed on villa entrance porticos, between large windows, or along exterior walls to break up flat surfaces with classical architectural relief
- Its high moisture resistance makes it equally suitable for humid pool houses, covered patios, and luxury wellness areas
- To install the P5050P pilaster column, ensure the mounting surface is clean, dry, and structurally sound
- Measure and mark the vertical alignment carefully
- Apply a generous bead of high-quality polyurethane (PU) mounting adhesive to the back of the column
- Press the profile firmly against the wall
- Due to its 2400 mm height, mechanical fastening with stainless screws is mandatory to secure the column while the adhesive cures
- Countersink the screws slightly below the surface
- Use a high-quality acrylic filler or polyurethane-compatible putty to cover the screw heads and any joint seams
- Once dry, sand the filled areas smooth using 180-220 grit sandpaper
- The column comes with a factory-applied primer that prepares the surface for painting
- While an additional primer is optional depending on your paint manufacturer's warranty specifications, finish the installation by applying two coats of high-quality water-based, synthetic, or UV-resistant paint
- The P5050P fluted pilaster column is designed for low maintenance and exceptional longevity
- For interior installations, regular dusting with a soft microfiber cloth or gentle vacuuming with a brush attachment is sufficient to keep the vertical flutes clean
- If needed, the surface can be wiped with a damp cloth and mild soapy water
- For exterior facade applications, the column can be gently washed down with low-pressure water to remove environmental dust
- Avoid using abrasive scrubbing pads, high-pressure washers, or harsh acidic and chemical cleaners that could damage the paint finish
- If the surface suffers mechanical impact, it can easily be repaired using standard filler, sanded, and spot-painted to restore its original look
Can the P5050P pilaster be used on exterior facades?
Yes, the P5050P is fully compatible with exterior applications. Made from high-density rigid polyurethane with a water absorption rate under 1%, its dimensional stability has been tested between -20 °C and +70 °C. For outdoor durability, it must be finished with a UV-resistant exterior paint to prevent yellowing over time.
How do I glue and secure this heavy-looking column?
Despite its substantial, solid appearance, the P5050P is lightweight, which makes installation straightforward. You must use a premium polyurethane (PU) mounting adhesive on the back surface, combined with mechanical fastening using screws. Screws ensure the profile remains perfectly flush and secure while the adhesive cures.
Do I need to apply an additional primer before painting?
The P5050P comes with a factory-applied primer that prepares the surface for paint adhesion. However, because paint manufacturers typically do not guarantee their coatings unless applied over their own proprietary primers, applying an additional primer is an optional step left to the installer's discretion.
How does polyurethane compare to traditional gypsum or wood columns?
Unlike heavy gypsum, polyurethane is lightweight, shatterproof, and resistant to cracking over time. Compared to wood, it is highly resistant to moisture, rot, insects, and humidity, helping reduce warping and decay in damp environments, making it ideal for both indoor and outdoor use.
Can I adjust the height of the P5050P column?
Yes, the P5050P can be easily cut to your required height using standard woodworking tools, such as a miter saw or a fine-toothed hand saw. After cutting, sand the edge smooth before mounting. It can be paired with matching polyurethane capitals and bases to complete the classic column aesthetic.
