Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Smooth, flat-bodied panel-column texture |
| Color | White |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Diameter | Ø 50 mm |
| Dimensions | 50 × 502 × 2400 mm |
| Weight | 7.14 kg |
| Sales Unit | piece |
Details
Support
Technical drawing: Download DWG (167 KB)
Similar Products(Architectural Pilaster Columns)
This architectural flat panel pilaster column offers a sophisticated solution for structural framing and wall division. Measuring 50 mm in depth, 502 mm in width, and 2400 mm in height, it provides a balanced vertical element that complements modern and classical architectural designs. Unlike traditional heavy plaster or moisture-prone wood alternatives, this component delivers high mechanical resistance without adding excessive weight to your building structures.
Manufactured from high-density rigid material (150-220 kg/m³), this flat panel pilaster offers wood-like hardness and excellent impact resistance. Its closed-cell physical structure ensures low water absorption (below 1%), making it resistant to swelling, rotting, mold, and insect infestations. With dimensional stability tested between -20 °C and +70 °C, it maintains exceptional dimensional stability over time, preventing warping or shrinkage even in challenging climates.

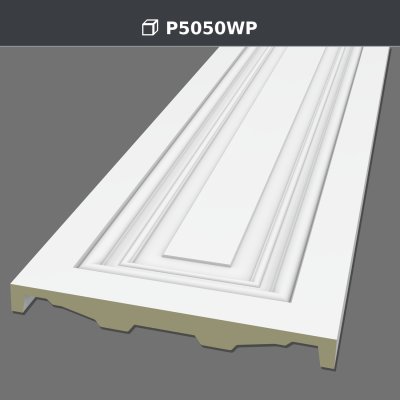

Visually, the P5050WP model features a clean, smooth, flat-body panel layout framed by subtle, elegant step-profile moldings. This minimalistic yet structured design creates a deep geometric perspective on flat surfaces, breaking up large wall spans with understated style. The factory-applied primer coat provides a smooth, uniform surface that is ready for subsequent coating layers based on your specific project requirements.
This versatile pilaster serves as a premium decorative element for framing grand entrance doors, flanking large window arches, or segmenting expansive hallways in boutique hotels, restaurants, and residential villas. When used outdoors, it functions exceptionally well as a decorative facade column, provided it is finished with a UV-resistant paint to protect the material from natural solar yellowing.
Installation is fast and efficient compared to stone or plaster. The process involves preparing a clean, dry surface, cutting to size if necessary, and applying polyurethane (PU) mounting adhesive for bonding. Mechanical fastening with screws is mandatory to ensure permanent stability. Once mounted, the joints and screw heads are filled with exterior-grade putty, sanded with 180-220 grit paper, and finished with two coats of quality paint.
- The P5050WP flat panel pilaster column is a highly versatile architectural element designed for both interior and exterior applications
- In residential interiors, it is highly effective for creating grand feature walls, framing fireplace mantels, or defining distinct zones in open-plan living rooms and dining areas
- When paired with decorative column capitals and bases, it transforms simple drywall partitions into stately architectural features
- For commercial properties such as luxury hotel lobbies, corporate boardrooms, and upscale restaurants, these flat pilasters add a structured, professional touch to reception areas and long corridors
- On exterior facades, they are widely used to flank main entrance doors, frame monumental windows, or decorate gate pillars, elevating the building's curb appeal
- Thanks to its water-resistant properties, it is also suitable for semi-outdoor spaces like covered terraces, balconies, and patios
- To ensure long-lasting beauty outdoors, always apply a high-quality UV-resistant exterior paint
- Start by ensuring the installation surface is completely clean, dry, and free of dust
- Measure the installation height and cut the pilaster using a fine-toothed saw if adjustments are needed
- Apply a generous amount of polyurethane (PU) mounting adhesive to the back of the panel
- Press the pilaster firmly onto the wall
- For safety and long-term stability, mechanical securing with screws is mandatory
- Once fixed, fill all screw holes and joint seams with a high-quality acrylic or exterior-grade putty
- After drying, sand the filled areas smooth using 180-220 grit sandpaper
- While the product comes with a factory-applied primer, applying an extra primer coat prior to final painting is optional and depends on your paint manufacturer's guidelines
- Finish by applying two coats of water-based or synthetic paint
- For exterior installations, a UV-resistant topcoat is required
- Maintaining the P5050WP pilaster column is highly straightforward due to its dense, water-resistant surface
- For indoor applications, regular dusting with a dry microfiber cloth or wiping with a damp cloth and mild detergent is sufficient to keep it clean
- Avoid using harsh abrasive cleaners or strong chemical solvents that could damage the paint finish
- For exterior installations, the surface can be washed down with low-pressure water or wiped clean
- We recommend inspecting the paint finish on outdoor installations once a year to ensure the UV-protective coating remains intact, especially in areas exposed to direct sunlight
Can this pilaster column be used on outdoor facades?
Yes, the P5050WP pilaster is fully suitable for both indoor and outdoor applications. Made from high-density rigid polyurethane, it has low water absorption (below 1%) and is highly resistant to rot, mold, and extreme weather. However, for outdoor use, it is mandatory to apply a high-quality UV-resistant exterior paint to prevent the unpainted material from yellowing over time under direct solar radiation.
What are the main benefits of polyurethane over plaster or wood?
Polyurethane offers a lightweight yet durable alternative. Unlike plaster, it is shatterproof, highly impact-resistant, and significantly easier to transport and install. Assess water and moisture exposure using the product technical data, surface finish and installation details. It also provides excellent dimensional stability under varying humidity, and dimensional stability has been tested between -20 °C and +70 °C.
How do I choose the right adhesive for installation?
For a secure and permanent bond, you must use a dedicated polyurethane (PU) mounting adhesive. Standard silicone adhesives do not provide the necessary structural hold and should be avoided. Additionally, mechanical fixing with screws is mandatory to support the vertical load during the curing process and ensure long-term stability.
Does the product require an extra primer coat before painting?
The pilaster comes with a factory-applied primer coat that prepares the surface for painting. However, paint manufacturers often do not guarantee their coatings unless their specific primers are used. Therefore, applying an additional primer coat before the final two coats of paint is optional and left to the discretion of the installer or project specifications.
Can I cut or adjust the height of this panel column?
Yes, the P5050WP can be easily cut to your desired height using standard woodworking tools, such as a hand saw or a miter saw with a fine-toothed blade. The material behaves similarly to high-density wood, allowing for clean, precise cuts without crumbling or splintering, making it highly adaptable to various wall heights.
